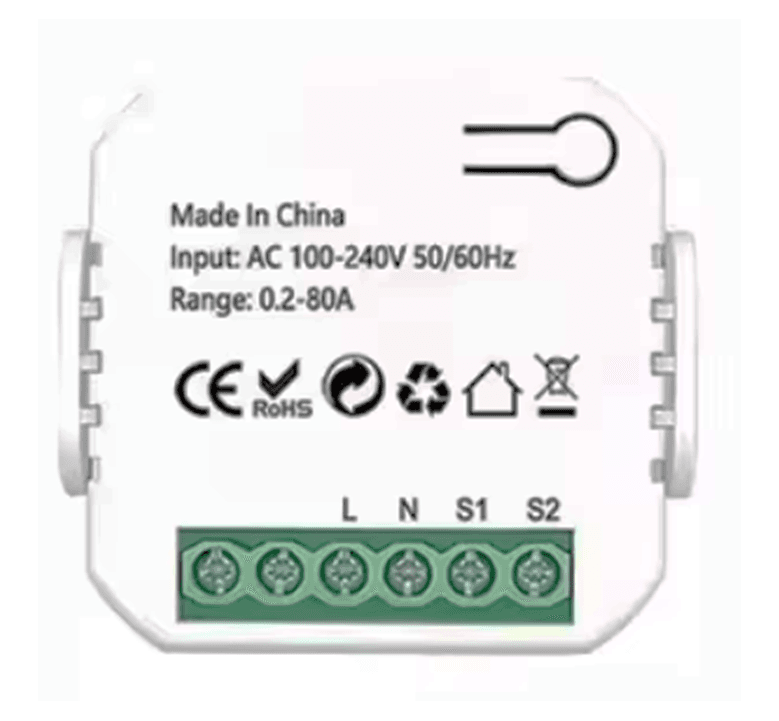

Smart Energy Monitor 1 x Clamp Meter | 80A CT Single Phase | WiFi Tuya Smart Life
This energy monitor is a compact, Wi-Fi-enabled device designed to track electricity usage in real-time. By using a Current Transformer (CT) clamp, it monitors power consumption without requiring you to cut or rewire your main electrical lines.

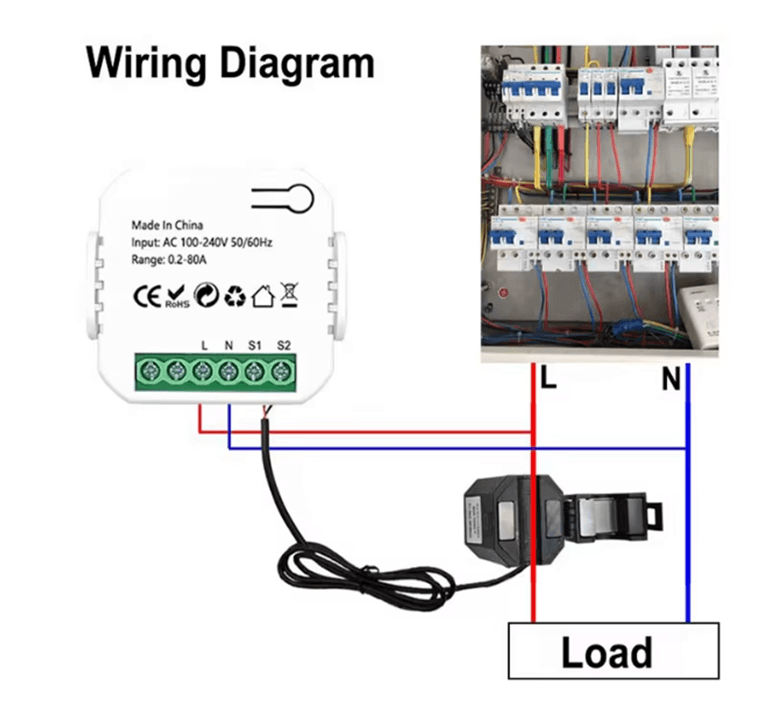

Installation note: When installing the CT clamp, you must only clamp it around the live wire (red wire). Clamping both the live and neutral wires simultaneously will result in a reading of 0 because the opposing magnetic fields cancel each other out.
Product features
- Non-invasive installation: the CT clamp snaps around the live wire. It uses electromagnetic induction to measure the current, meaning there is no direct contact with live copper.
- Real-time data: view instantaneous power (W), voltage (V), and current (A) through an app.
- Historical tracking: record hourly, daily, and monthly kilowatt-hour (kWh) usage, often displayed in bar charts or graphs for energy auditing.
- Bi-directional measurement: can track both “Grid Consumed” and “Solar Exported,” making them useful for homes with photovoltaic systems.
Specifications
- Model: CT-1103
- Input voltage: 100~240VAC, at 50/60Hz
- Working current: 5mA
- CT measuring range: 0.2~80A
- Protocol: WiFi (2.4GHz)
- Dimension: 46 x 46 x 21.3 (L x W x H in mm)
- Working temperature: -10°C ~ +55°C
- Clamp diameter: 10mm
- Mounting: 35mm DIN Rail or surface mount
Typical applications (not limited to)
- Residential energy management
- Commercial and multi-tenant use
- Solar and grid integration
What is in the box?
- 1 x Smart Energy Monitor unit
- 1 x 80A CT
- 1 x instruction manual
