Smart 3x Clamp 200A Energy Monitoring Meter | WiFi Tuya Smart Life
This Smart 3x Clamp Energy Monitoring Meter can be used in any application up to 200A to accurately measure power consumption. The unit makes use of 3x Clamp Meters or CTs (current transducers) and is offered in 80A (also in stock), 120A, 200A (this model) and 300A versions. The benefit of these units is that they merely ‘clamp onto the power cable’ and are therefore non-intrusive and simple to install. The unit can for example be used to monitor your total power consumption and for example your geyser and pool pump etc.
Can be used to make any home, office or factory ‘Smart’ while monitoring the amount of energy used. By adding a Smart Switch you can also Switch (ON/OFF) any device based on a preset current limit from this device. All this remotely via your phone from any location (free Tuya app).
Simply ‘Wire, Configure and Play’.
Note:
- Does not require any wiring, simple and fast to install. Ensure to SITCH OFF all power before fitting the clamps.
- The unit can be used for both single-phase or three-phase (380VAC) factories, large office etc applications (230VAC) homes small offices etc.) – for these our 80A version is recommended.
- The CTs are directional and must be placed with the arrow pointing towards the load.
- CTs are interchangeable.
Home Automation is made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Great way to make any appliance or device, ‘Smart’.
Download the User Manual [click here]
Specifications
Product Name | Single/3-phase Power Clamp |
Material | Plastic |

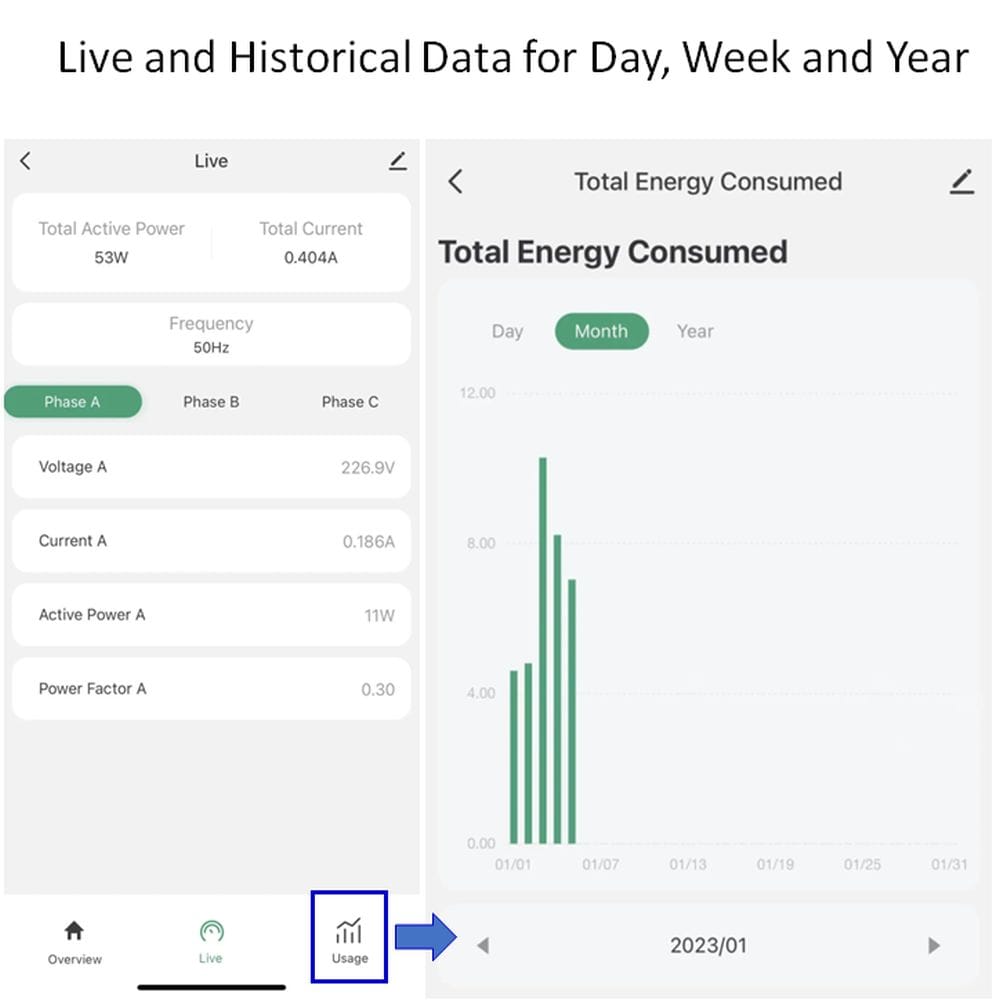

Function | Measures real-time Voltage, Current, PowerFactor, ActivePower and total energy consumption |
Wi-Fi | 802.11 B/G/N20/N40 |
RF Characteristics | Operating frequency: 2.4GHz Internal Antenna Output Power: Up to +20dBm |
Operating Voltage | 100~240 Vac 50/60 Hz |
Calibrated Metering Accuracy | ≤ 100W Within ±2W >100W Within ±2% |
Reporting Cycle | Every 2 seconds |
CT Provided | CT 200A (default) CT 80A/120A/300A (optional) |
Clamp diameter | 80A: 10mm 120A: 16mm 200A: 20mm (this device) 300A: 24mm Wire Length: 850 mm |
Operating environment | Temperature: -20 ℃ ~+55 ℃ Humidity: ≤ 90% non-condensing |
Dimension | 86 x 86 x 37 ( L x W x H in mm) |
Typical Uses (but not limited to)
- Manage the Power Consumption of your home of any 3x specific devices in an office or factory.
- Verify the electrical consumption of tenants (in apartments, holiday homes etc.) or any department or office section.
- Verify your Pre-Paid electricity consumption.
- Useful when used with ‘current power saving’ applications.
- Large pumps and or any machinery.

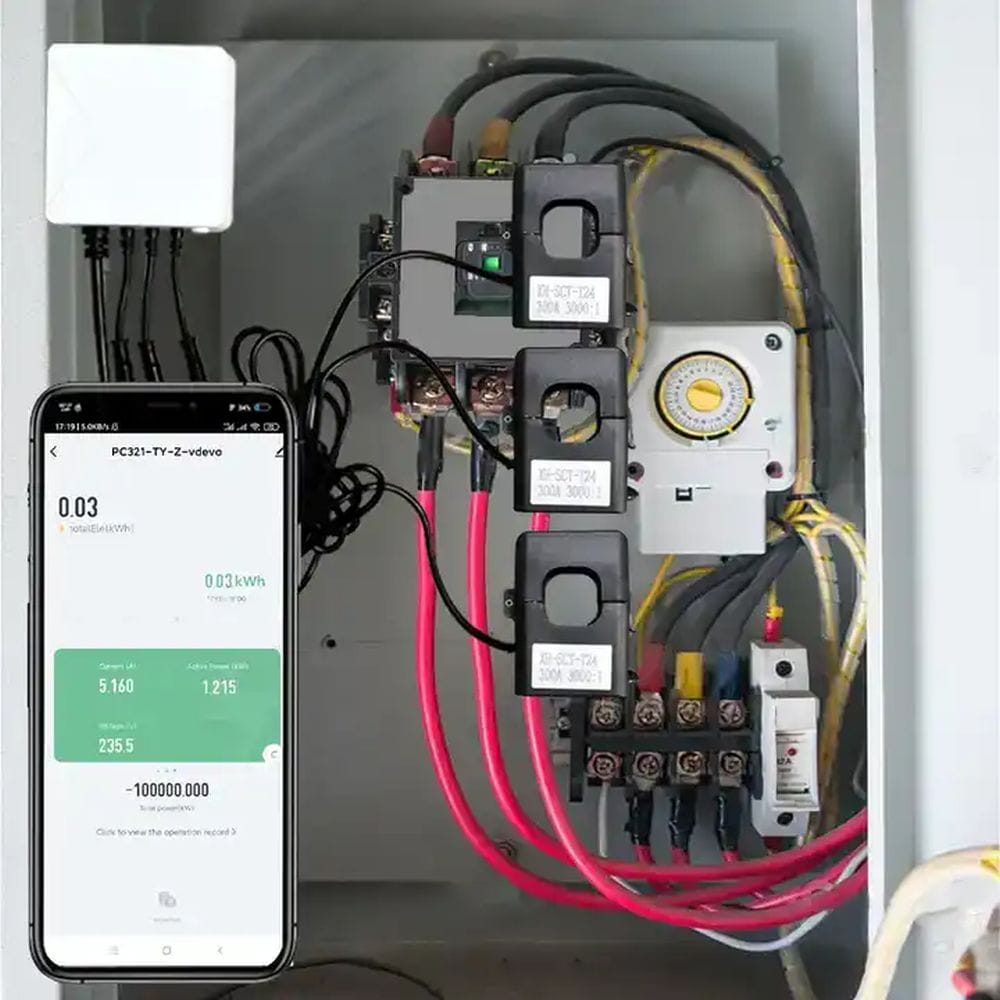

- Can be ‘clamped to any existing DB (Distribution Board).
- Does not require any re-wiring, simple and fast to install. Ensure to Switch off all power before fitting the clamps.
What’s in the Box?
- 1 x Smart 3x Clamp 200A Energy Monitoring Meter
- 1 x External WiFi Antenna
- 3 x CT clamps 200A
- 1 x Instruction Manual
