Wireless WiFi Ultrasonic Water Level Monitor | Pump Controller | Tuya Smart Life
Make your Water Level Monitoring system completely hassle-free and go ‘Smart’. Suitable for any water storage applications irrespective of volume such as Eco/ JoJo bulk storage tanks, fish tanks or ponds. For use in new installations or simply upgrading your current pump and controllers to be smart.
Working Modes: (see additional images)
- Fill the Water Tank (based on current water levels in the tank): select the Work Mode ‘Add Water’ function and select the low level to switch the pump ON and the high level to switch the pump OFF.
- Pump Water Out from Water Tank – irrigate (based on current water levels in the tank): select the Work Mode ‘Pumping’ function and select the high level to switch the pump ON and the low level to switch the pump OFF.
25A Output Upgrade – Essential Addition for Pumps. Most pumps exceed the current rating of this controller’s built-in relay switch. For this reason, a 25A contactor relay switch is highly recommended. The relay contactor has an input voltage of 230VAC (from this controller’s output) and is available in | 25A single phase – 2pole or |400VAC three phase – 4pole. To Buy a Contactor [click here].
Smart systems will never ‘lose’ their programming do not require any battery backup and can be controlled from pretty much anywhere on the ‘planet’. Simply ‘Connect, Configure Once, Wire and done’.
Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever-growing Smart Products. Supports Alexa, Google Home and IFTTT. Enables remote control of any number of devices or home appliances via the free Tuya SmartLife app installed on your phone or tablet (Android or IOS).
With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device ‘Smart’. All your Smart Devices connected via a Single Stable Platform have the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Features of this System
- Via the free Tuya app, you can pre-configure, activation dates, days of the week, and start and end levels giving you complete remote control.
- Fully Automated Water level replenishment based on any of five current levels. Replenishment can be via a Pump 230VAC (single phase). Use a suitable relay for 3phase pumps) or solenoid valves (24VAC).
- Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solutions.
- All your Smart Devices connected via a Single Stable Platform have the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
Typical Uses (but not limited to)
- Water tank monitoring
- Aquarium Monitoring
- Well pump control
- Remote monitoring
- Early warning systems
- Data logging
- Integration with smart home automation
Specifications
- Product Name: Tuya Wireless WiFi Ultrasonic Water Level Monitor
- Adaptor power: 100 – 240VAC, 50/60Hz
- Ultrasonic water sensor power: 5VDC, ≤100mA
- Ultrasonic water sensor cable length: 2.76 meters (excl. power adaptor).
- Total cable length (sensor + adaptor): 3.68 meters
- Network mode: 2.4G WiFi
- Installation height: 0.1m ~ 4m.
- Liquid Maximum Depth: 0.1m ~ 4m.
- Accuracy: ±0.02m
- Operation temperature: -20°C ~ 70°C
- Protection: IP65
How to install the device?
- Place the gasket in the centre of the tank where you will drill a hole for the Ultrasonic Water Level Monitor.
- Drill a hole (with a diameter of >55mm) in the middle of the tank.
- Place the sensor over the gasket with the screw holes aligned and unobstructed.
- Fasten the sensor with the self-tapping screws that are provided.
Note: If the mounting surface is curved, it is sufficient to fix the device with screws, make sure that the screws do not interfere with the data. If the data is abnormal, the screws must be loosened.

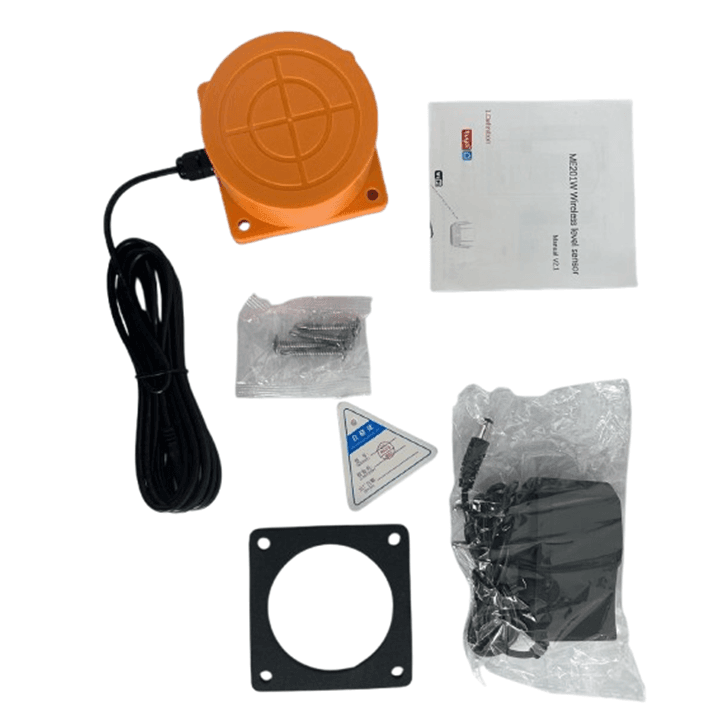

What’s in the Box?
- 1 x Tuya Wireless WiFi Ultrasonic Water Level Monitor
- 1 x 5V 2-pin power adaptor
- 1 x Instruction manual
- 1 x Gasket
- 4 x screws
