Smart 4 Pole Circuit Breaker | Energy Meter | Tuya Smart Life

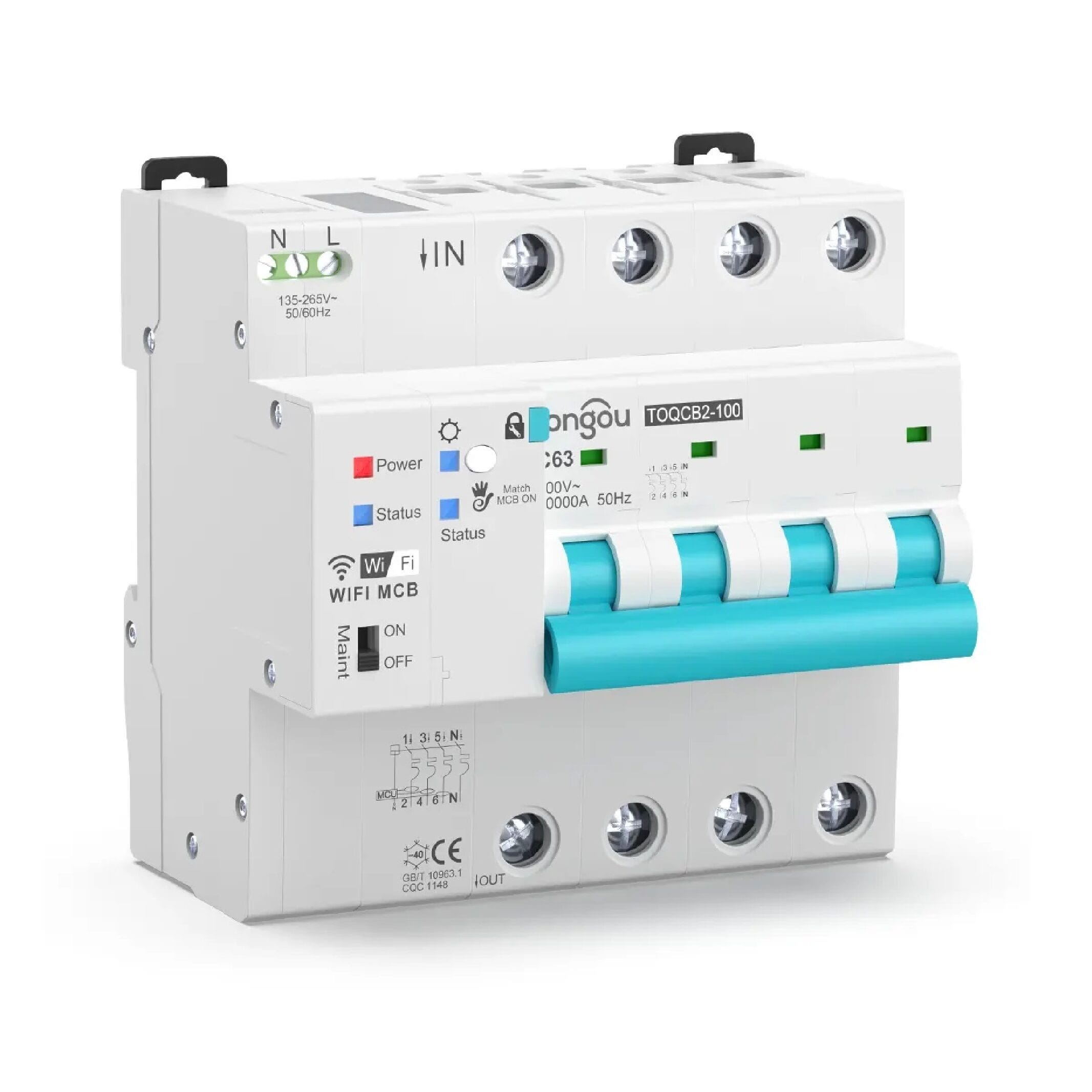

The Smart 4 Pole Circuit Breaker is a high-performance smart miniature circuit breaker (MCB). It combines the mechanical protection of a traditional circuit breaker with the advanced control of a smart home device. Designed for mounting on standard 35mm DIN rails, this device allows you to monitor and control electrical circuits remotely via a smartphone.

Product features

• Remote operation: use the Tuya smart apps to switch the circuit on or off from anywhere in the world.
• Real-time monitoring: includes energy metering, allowing you to track:
  • Voltage
  • Current
  • Power consumption
• Voice control: fully compatible with Amazon Alexa and Google Assistant for hands-free operation.
• Safety interlocks: features a physical toggle switch for manual override and often includes a safety lock feature in the app to prevent accidental remote switching during maintenance.

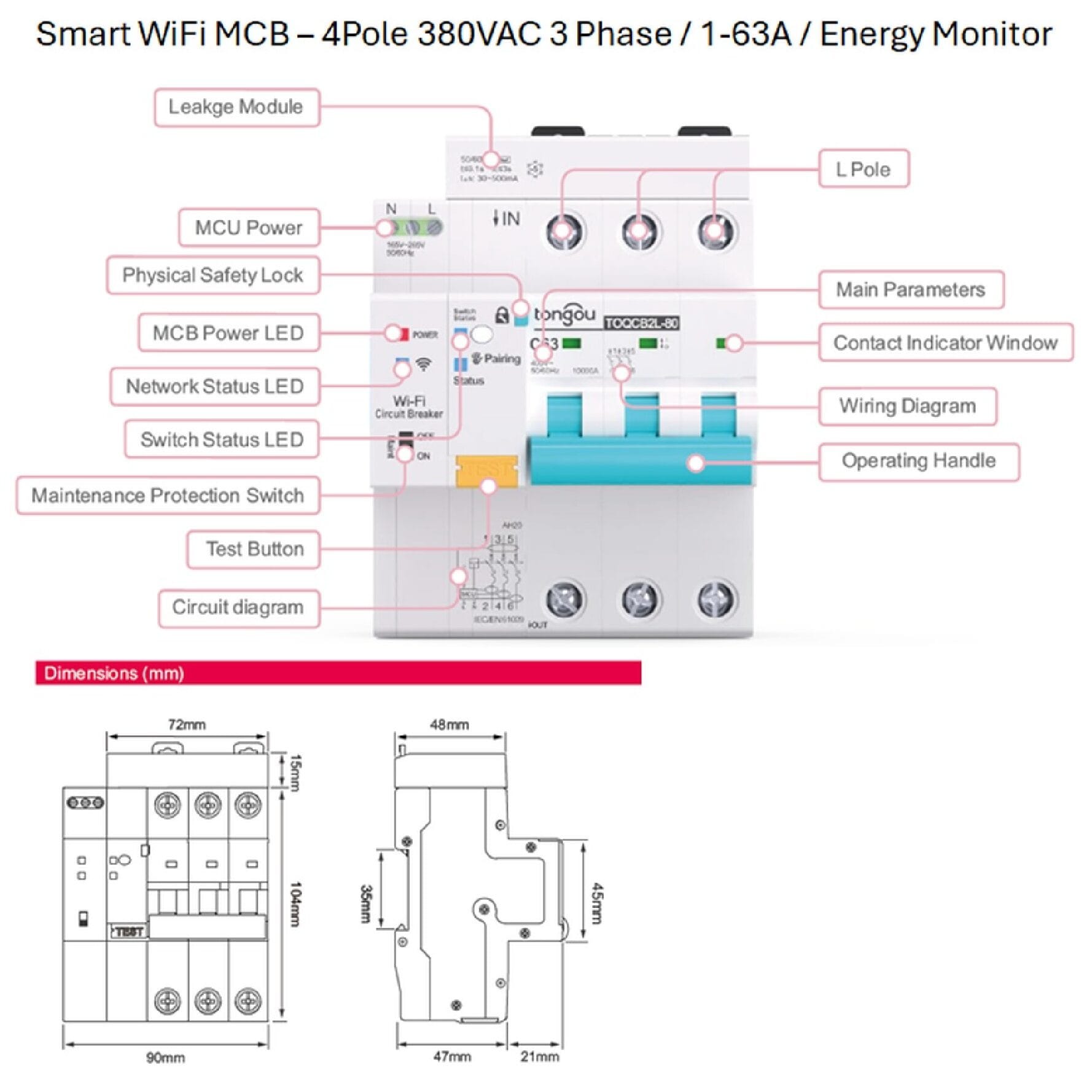

Specifications

• Model: 4P C63
• Number of poles: 4P
• Input voltage: 380~415VAC @ 50/60Hz
• Phase line operational voltage: 230V (L1-N, L2-N, L3-N)
• Over-current protection: 1~63A
• Over-voltage protection: 245~295V
• Under-voltage protection: 145~220V
• Curve code: C
• Rated insulation voltage: 500VAC
• Rated ultimate short-circuit breaking capacity: 10kA
• Operational safety: a physical safety lock, which prevents the device from being closed once engaged
• Wireless protocol: WiFi (2.4GHz)
• Energy consumption measurement accuracy: class 1.0
• Mounting support: DIN rail 35mm
• Monitoring physical data:
  • Voltage
  • Current
  • Power (Forward/Reverse)
  • Power Factor
  • Power Consumption (Forward/Reverse)
  • Temperature
  • Phase angle
  • Switch state
  • Device operating
  • Status
  • Frequency

Please use a qualified electrician when installing the circuit breaker.

If you have a Samite distribution board, you will need to get an adaptor [click here].

Downloads

• Specification Sheet [click here]
• User Manual [click here]

Typical application (not limited to)

• Home
• Offices
• Commercial
• Industrial

What is in the box?

• 1 x Smart 4 Pole Circuit Breaker
• 1 x Instruction manual
